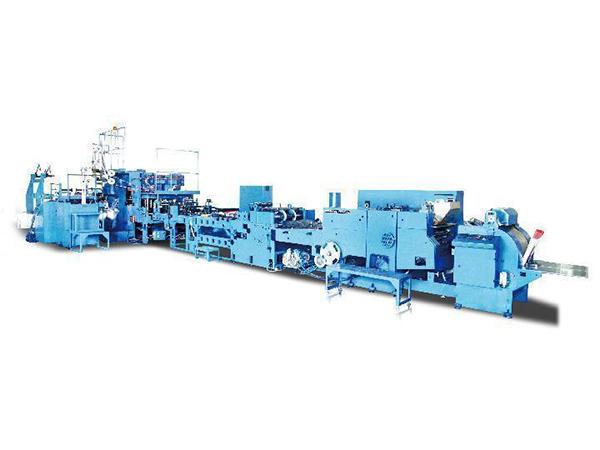

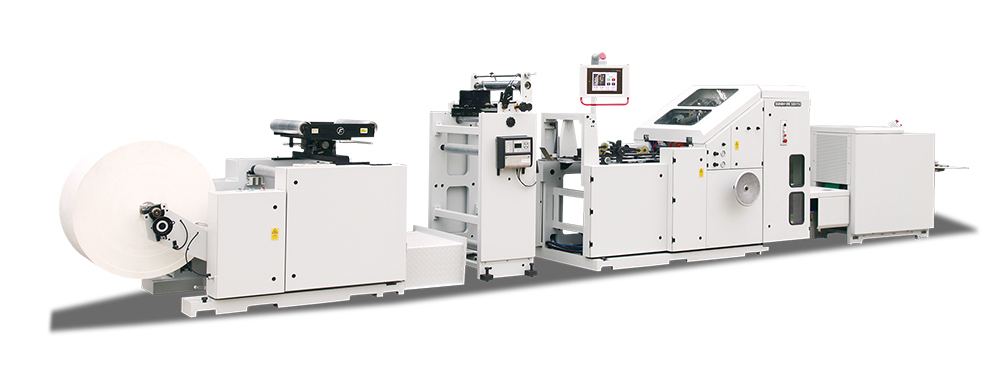

SBH150B Roll Fed Square Bottom Paper Bag Machine

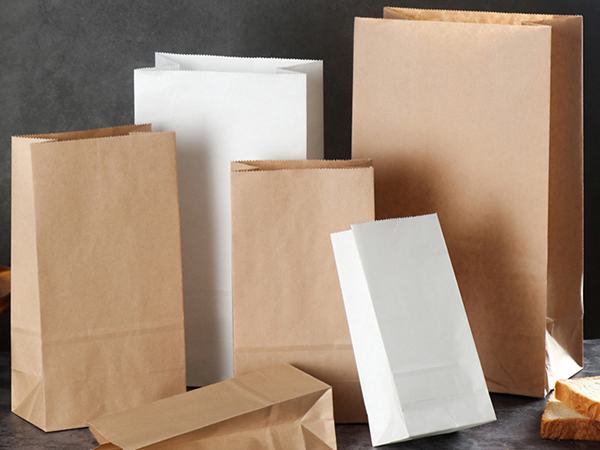

The SBH150B roll fed square bottom paper bag machine is designed to manufacture square bottom paper bags from a paper roll in blank or printed paper. Side gluing, tube forming, tube cutting, bottom creasing, bottom gluing, bottom forming and final product out feed are all completed in a single run, making this machine ideal for the production of 40gsm to 50gms paper bags. It is also ideal equipment for making paper bags for food, shopping bags and other commonly used paper bag types. The machine uses German machinery manufacturing technology and ideas, including a high speed movement of the central control system (CPU) control, touch screen display, and servo system adjustable bag length, all in order to produce bags in different specifications. Customers can request a servo window die cutting and film patching unit, two ply unit, and 1-4 printing color unit be added to the SBH150B roll fed production machine in order to produce see through window bags, two ply bags and bags with an inline printing, offering clients better value for their money.
-
USA NORDSON Cold Glue Adhesive System
-
Bag Production Part
-

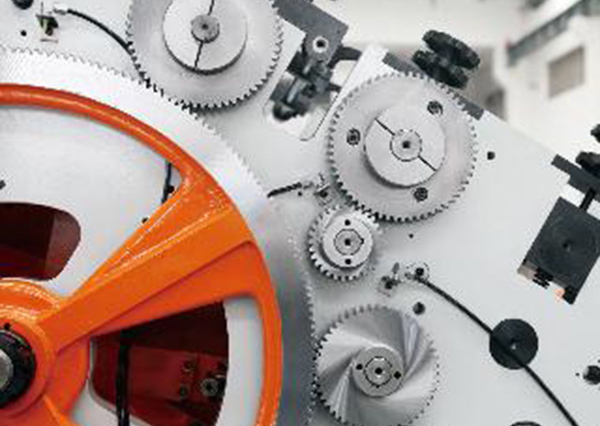

Mechanical Drive
-
Model:
SBH150 - Paper Thickness (gsm):
- 40-150
- Tube Cut Off Length (mm):
- 191-385
- Bag Face Width (mm):
- 80-200
- Bag Bottom Size (mm):
- 50-100
- Max. Speed (bags/min):
- 250
-
Model:
SBH150B - Paper Thickness (gsm):
- 40-150
- Tube Cut Off Length (mm):
- 191-385
- Bag Face Width (mm):
- 80-200
- Bag Bottom Size (mm):
- 45-100
- Max. Speed (bags/min):
- 250
-
Model:
SBH330 - Paper Thickness (gsm):
- 40-180
- Tube Cut Off Length (mm):
- 280-540
- Bag Face Width (mm):
- 120-330
- Bag Bottom Size (mm):
- 70-180
- Max. Speed (bags/min):
- 230
-
Model:
SBH330B - Paper Thickness (gsm):
- 50-180
- Tube Cut Off Length (mm):
- 280-540
- Bag Face Width (mm):
- 150-330
- Bag Bottom Size (mm):
- 90-180
- Max. Speed (bags/min):
- 220
-
Model:
SBH330BPro - Paper Thickness (gsm):
- 50-150
- Tube Cut Off Length (mm):
- 280-540
- Bag Face Width (mm):
- 150-330
- Bag Bottom Size (mm):
- 90-180
- Max. Speed (bags/min):
- 220
-
Model:
SBH450B - Paper Thickness (gsm):
- 70-180
- Tube Cut Off Length (mm):
- 368-762
- Bag Face Width (mm):
- 200-450
- Bag Bottom Size (mm):
- 90-205
- Max. Speed (bags/min):
- 150
-
Model:
SBH450C - Paper Thickness (gsm):
- 70-180
- Tube Cut Off Length (mm):
- 368-762
- Bag Face Width (mm):
- 200-450
- Bag Bottom Size (mm):
- 120-260
- Max. Speed (bags/min):
- 150

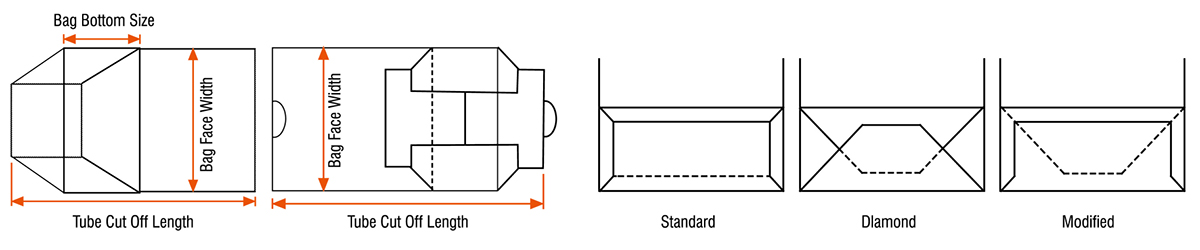

| Technical Info |
|
|
|
|
|
|
|
| Paper Roll Width (mm) | 280-640 | 280-640 | 405-1050 | 465-1050 | 505-1050 | 610-1310 | 690-1310 |
| Paper Roll Dia. (mm) | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
| Paper Roll Core Dia. (mm) | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 |
| Paper Thickness (gsm) | 40-150 | 40-150 | 45-180 | 50-180 | 50-180 | 70-180 | 70-180 |
| Tube Cut Off Length (mm) | 191-385 | 191-430 | 280-540 | 280-540 | 280-540 | 368-762 | 368-762 |
| Bag Face Width (mm) | 80-200 | 80-200 | 120-330 | 150-330 | 150-330 | 200-450 | 200-450 |
| Bag Bottom Size (mm) | 50-100 | 45-100 | 70-150 | 70-180 | 90-180 | 90-205 | 120-260 |
| Max. Speed (bags/min) | 250 | 250 | 230 | 220 | 220 | 150 | 150 |
| Total Power (kW) | 8.75 | 8.75 | 16.5 | 18.9 | 18.9 | 17.9 | 17.9 |
| Machine Weight (kg) | about 5600 | about 6500 | about 8500 | about 9000 | about 9000 | about 11000 | about 11000 |
| Machine Size (L×W×H)(m) | 8.6×2.6×1.96 | 8.6×2.6×1.96 | 11.5×3.1×1.96 | 11.5×3.1×1.96 | 11.5×3.1×1.96 | 13×3.9×2 | 13×3.9×2 |
| Three Types of Bottom Seal | yes | yes | yes | yes | yes | yes(Two) | yes(Two) |
| Servo Lip Cut Device | yes | yes | yes | yes | yes | with or no | with or no |
| M= Servo Motorized Plate Device | no | no | no | no | no | no | no |
| Bottom Forming Drum With Vacuum Assist | no | no | yes | yes | yes | yes | yes |
| Options Unit |
|
||||||
- The roll fed square bottom paper bag machine is equipped with a Japanese Mitsubishi servo system and SICK photocell for correction, so that users can accurate track printed material, and minimize adjustment and pre-set times.
- It is equipped with a Mitsubishi electric control system and Mitsubishi motion controller (CPU). This achieves an integration of an optical fiber in order to achieve a high speed and high precision, motion control and production flow test. With a touch screen display, the operation functions are clear, and feature a great human to machine interface.

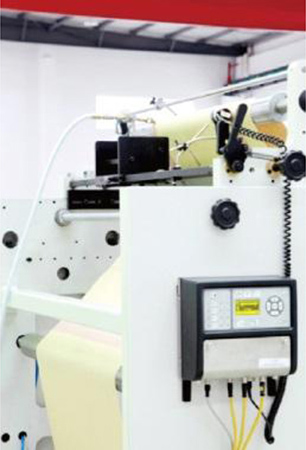

- Equipped with a tension system and automatic WEB correction system, this paper bag production machine can reduce waste and improve efficiency.
- The automatic fault alarm, equipped with paper web detector, avoids damage to the machine caused by paper jams.
- It is also equipped with an automatic lubrication system and timing quantitative lubrication.
