Roll-fed Block Bottom Paper Bag Machine, Flat & Satchel Paper Bag Machine
Spare Parts
With the delivery of the machine, we also supply a number of spare parts, for free. Our machinery is known for the long service life, and short replacement times for any damaged parts, ensuring very little downtime.
As a professional bag making machine manufacturer, we have an expert technical team and great attitude, which together aid us in our pursuit of excellence. Through our long-term research into the machines we have produced, we have carried out an extensive feasibility study of the paper bag industry, giving us the confidence customers expect from a company and the machines they supply.

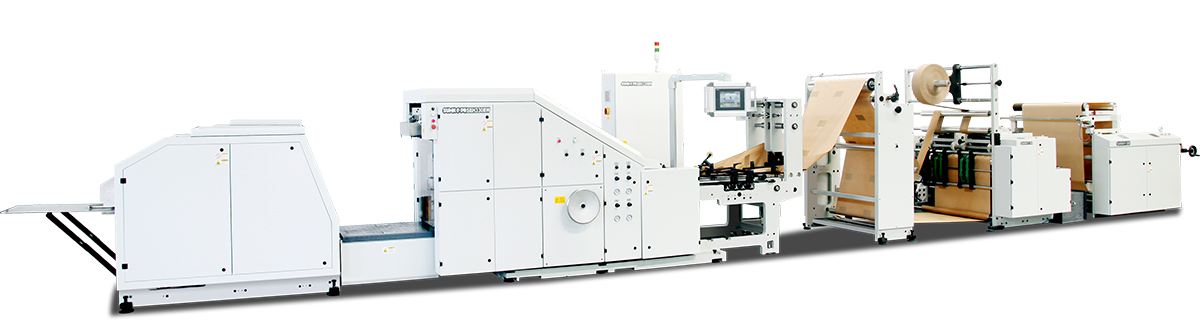

The SBH-W series roll fed square bottom paper bag machine is based on the SBH series and is designed to manufacture square bottom paper bags from paper roll in blank or printed designs. A die cut handle device has been added to the manufacturing line, so that a handle can be added to the bag. Side gluing, tube forming, die cut handle, tube cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can all be completed in a single run, making this ideal equipment for food bags, shopping bags and other common paper bags.

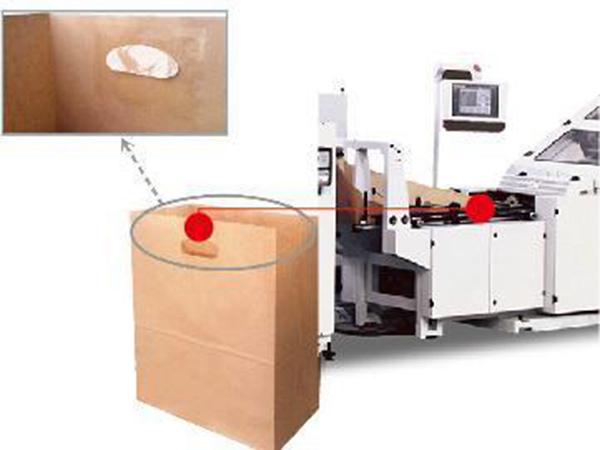

Sunhope is the first company in China to design and produce a die cut handle patch application unit, which can be added to the SBH290W, SBH330W, and SBH330BW machines to produce die cut handle bag inline with reinforced patches using paper or film materials.
1. The roll fed square bottom paper bag machine is equipped with a Japanese Mitsubishi servo system and SICK photocell for correction, so that users can accurate track printed material, and minimize adjustment and pre-set times.
2. It is equipped with a Mitsubishi electric control system and Mitsubishi motion controller (CPU). This achieves an integration of an optical fiber in order to achieve a high speed and high precision, motion control and production flow test. With a touch screen display, the operation functions are clear, and feature a great human to machine interface.

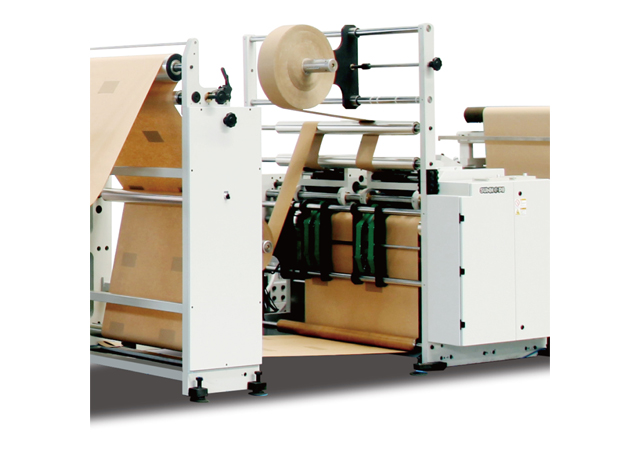

3. Equipped with an Italian RE tension system and German BST WEB guiding system, the machine can reduce waste and improve efficiency.
4. The patch length and width are adjustable. Patch position can be adjusted.
5. The automatic fault alarm is added to the paper web detector to avoid damage to the machine caused by paper jams.
Bag Schematic Diagram
Technical Info | SBH290W+PAV02 | SBH330W+PAV02 | SBH330BW+PAV02 |
Paper Roll Width (mm) | 395-910 | 420-1050 | 465-1050 |
Paper Roll Dia. (mm) | ≤1200 | ≤1500 | ≤1500 |
Paper Roll Core Dia. (mm) | Φ76 | Φ76 | Φ76 |
Paper Thickness (gsm) | 50-150 | 50-160 | 50-160 |
Tube Cut Off Length (mm) | 280-530 | 280-530 | 280-530 |
Bag Face Width (mm) | 120-290 | 125-330 | 150-330 |
Bag Bottom Size (mm) | 70-150 | 70-150 | 70-180 |
Patching Range (Length) (mm) | 40-210 | 40-210 | 40-210 |
Patching Range (Width) (mm) | 25-180 | 25-180 | 25-180 |
Max.die Diameter (mm) | 400 | 400 | 400 |
Inner Diameter (mm) | 75 | 75 | 75 |
Paper Patch Thickness (gsm) | 120-250 | 120-250 | 120-250 |
Film Patch Thickness (u) | 28-50 | 28-50 | 28-50 |
Max. Speed (bags/min) | 220 | 230 | 220 |
Bag Machine Total Power (kW) | 10.25 | 14.5 | 14.5 |
Pav02 Total Power (kW) | 12.9 | 12.9 | 12.9 |
Machine Weight (kg) | about 9000 | about 9500 | about 10000 |
Machine Size ((L×W×H)m) | 14.7×3.1×1.96 | 14.7×3.1×1.96 | 14.7×3.1×1.96 |
Three Types Bottom Seal | in | in | in |
Servo Lip Cut Device | in | in | in |
Serrated & Straight Cut Device | in | in | in |
