With the delivery of the machine, we also supply a number of spare parts, for free. Our machinery is known for the long service life, and short replacement times for any damaged parts, ensuring very little downtime.
As a professional bag making machine manufacturer, we have an expert technical team and great attitude, which together aid us in our pursuit of excellence. Through our long-term research into the machines we have produced, we have carried out an extensive feasibility study of the paper bag industry, giving us the confidence customers expect from a company and the machines they supply.

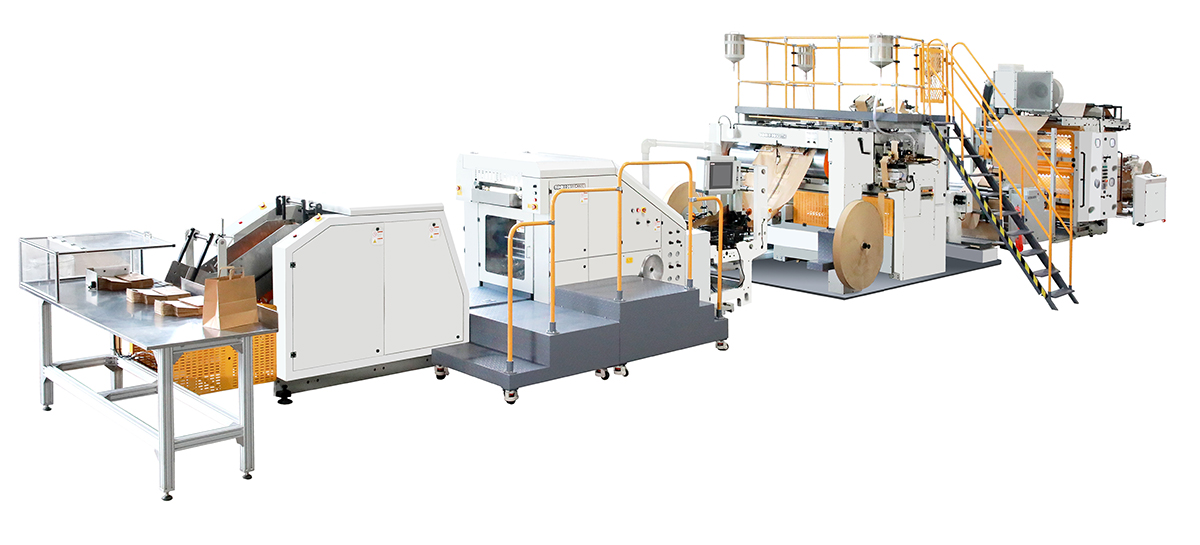

The fully automatic roll fed flat handle paper bag machine uses roll paper and roll paper handles as the raw material, and can carry out flat handle manufacturing, handle patching, tube forming, tube cutting, bottom forming, and compaction output in one continuous operation. It is especially suitable for large scale production of bags for food packaging and clothing. It also features a fully automatic production.
A flat handle (internal) paper bag has the same weight capacity as that of a twisted handle bag, and is relatively inexpensive to manufacture. The flat handle inside the bag significantly reduces the packing case size and the cost. Machine operation is simple and efficient, lending to its popularity on the market today.

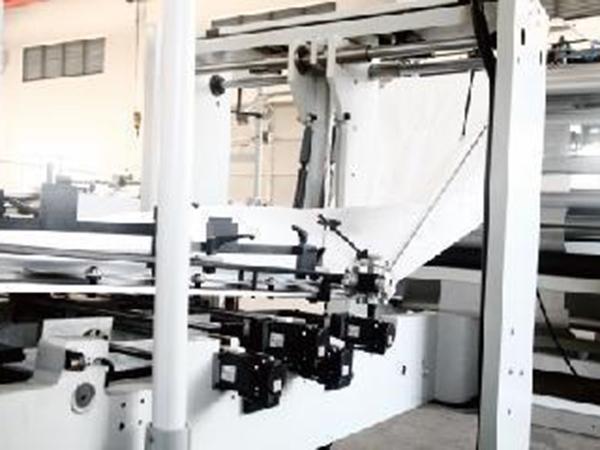

1. The servo adjustable former automatically adjusts the face width & gusset size, significantly reducing the debugging time.

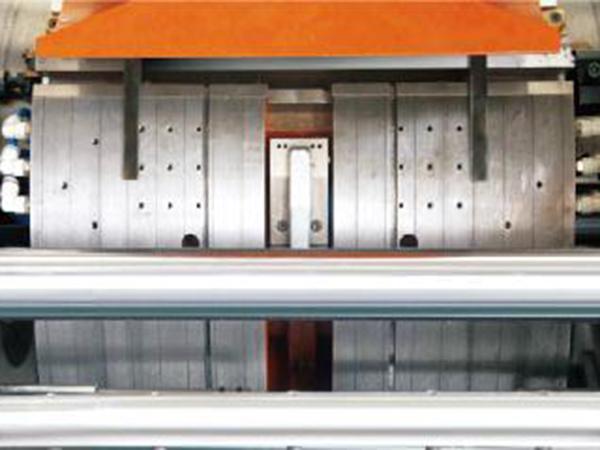

2. The drum is equipped with a vacuum assist for better control during bag bottom formation.
3. The bag making machine is equipped with a Mitsubishi electric control system and Mitsubishi motion controller (CPU) in order to achieve a high speed and high precision, as well as motion control and a production flow test. With a touch screen display, the operation functions are clear.
4. Equipped with a German BST automatic WEB guiding system, this machine can reduce waste and improve efficiency.
5. It is also equipped with an automatic lubricating oil system.
Bag Schematic Diagram
Technical Info | SBH330-508TH | SBH330B-508TH | SBH450-518TH | SBH450B-518TH |
Paper Roll Width (mm) | 530-1050 | 530-1050 | 640-1300 | 640-1310 |
405-1050 (No Handle) | 405-1050mm (No Handle) | 610-1300 (No Handle) | 610-1310 (No Handle) | |
Paper Roll Dia. (mm) | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
Paper Roll Core Dia. (mm) | Φ76 | Φ76 | Φ76 | Φ76 |
Paper Thickness (gsm) | 50-160 | 50-160 | 70-160 | 70-160 |
Tube Cut Off Length (mm) | 280-530 | 280-530 | 368-762 | 368-762 |
Bag Face Width (mm) | 200-330 (With Handle) | 200-330 (With Handle) | 240-450 | 240-450 |
125-330 (No Handle) | 150-330 (No Handle) | 200-450 (No Handle) | 200-450 (No Handle) | |
Bag Bottom Size (mm) | 70-150 | 70-180 | 90-180 | 90-205 |

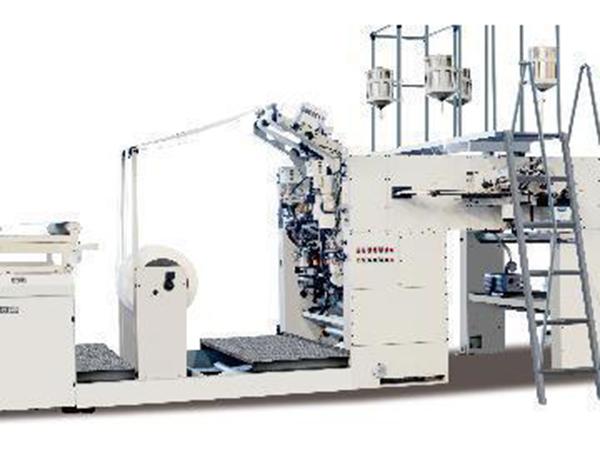

Flat Handle Height (A) (mm) | 75 | 75 | 100 | 100 |
Handle Patching Width (B) (mm) | 52 | 52 | 52 | 52 |
Handle Patching Length (C) (mm) | 155 | 155 | 170 | 170 |
Flat Handle Pitch (D) (mm) | 100 | 100 | 109 | 109 |
Flat Handle Width (E) (mm) | 12 | 12 | 16 | 16 |
Flat Handle Paper Roll Width (mm) | 95 | 95 | 95 | 95 |
Flat Handle Paper Thickness (gsm) | 70-80 | 70-80 | 80-100 | 80-100 |
Flat Handle Paper Roll Diameter (mm) | 1200 | 1200 | 1200 | 1200 |
Handle Paper Patch Roll Diameter (mm) | 1200 | 1200 | 1200 | 1200 |
Handle Paper Patch Roll Width (mm) | 155 | 155 | 170 | 170 |
Handle Paper Patch Thickness (gsm) | 80-110 | 80-110 | 80-110 | 80-110 |
Max. Speed (bags/min) | 140 | 140 | 120 | 120 |
Total Power (kW) | 23.9 | 23.9 | 27.05 | 27.05 |
Machine Weight (kg) | 23000 | 23000 | 25000 | 25000 |
Machine Size ((L×W×H)m) | 14.85×4.2×2.8 | 14.85×4.2×2.8 | 16.1×4.5×2.8 | 16.1×4.5×2.8 |
Three Types Bottom Seal | in | in | in | in |
Servo Lip Cut Device | in | in | no | no |
Serrated & Straight Cut Device | in | in | in | in |
1-4 Colors Flexo Printer Unit | yes | yes | yes | yes |
